A88-5G-replaceable battery
Product Specification (Model: A88)
Product Information
| Appearance Name | A88 | ||
|---|---|---|---|
| Series Model | A88 | ||
| Features | Thin and light body! | ||
Six Views
Function Diagram
Basic Information
| processor | MTK6877 6-nanometer 8-core 2.4GHz high-speed, low-power processor |
|---|---|
| operating system | Android 13 |
| Screen size | |
| Default battery capacity | 3050mAh |
| Optional battery capacity upgrade | no |
| charging duration | 3 hours |
| Continuous recording duration | about 8 hours |
| standby time | >300 hours without APP, depending on APP |
| anti-shake | Optional mechanical anti-shake |
| image format | MP4 |
| compression format | H.264/H.265 |
| Video size | Maximum 4K(3840*2160)30FPS |
| photo format | JPEG |
| horn | 2W |
| body memory | Standard 4+ 64G scalable up to 512G |
| Rear camera (auxiliary AF) | Default is not optional 1200W |
| Front camera (screen) | 200W |
| Rear camera (main) | Default 800W optional 1300W mechanical anti-shake lens |
| Photo size | Maximum 117 million |
| noise reduction module | not support |
Lighting
| laser lamp | no |
|---|---|
| alarm lamp | Red and blue warning lights |
| infrared lamp | the 3 |
| white light Lamp | have |
Interfaces
| USB interface | USB 3.0 |
|---|---|
| charging interface | Type-C |
| headphone jack | Type-C |
| G-sensor | support |
| vibration motor | support |
| external camera | support |

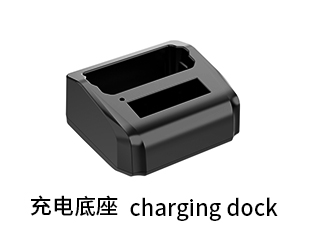

| charging base | support |
| charging method | Complete machine (detachable battery)+ seat charger |
| charger | 5V-2A |
Data Functions
| Sim/TF Card Slot | Double Sim Single TF |
|---|---|
| WIFI | WIFI5.8 a/b/g/n/ac |
| Bluetooth/433 | BT5.0(BR/EDR + BLE) supports Bluetooth remote control, Bluetooth voice, Bluetooth tag positioning, etc. |
| positioning | (Optional Beidou) Multi-mode Global GLONASS+GPS+Galileo+Compass |
| compass | support |
| air pressure sensor | support |
| temperature sensor | support |
| ambient light sensor | support |
| NFC | Support options |
| encryption card | support |
Dimensions
| Length (mm) | 72 |
|---|---|
| Height (mm) | 92 |
| Thickness (mm) | 24 |
| Weight (g) Approx | 188 |
Other Network Functions
| network standard | -------------------- |
|---|---|
| video intercom | Support law enforcement instrument to platform single and two-way video intercom, support law enforcement instrument end-to-end single and two-way video intercom (requires integration of third-party software SDK) |
| Voice cluster intercom | Support group intercom, end-to-end intercom |
| voice broadcast | Support TTS voice broadcast |
| voice control | Currently, it can only support Chinese, and other languages need to integrate third-party speech algorithms or secondary development |
| Facial and license plate recognition | support |
| Platform Administration software | Support real-time preview/real-time positioning/trajectory playback/intercom/monitoring/remote command issuance, etc.(support secondary development of API calls, independent platform deployment, or secondary independent development of independent key values) |
| text overlay | Support stacking time, equipment number, law enforcement officer number, location information, speed information, and support stacking in Chinese |
| Command and dispatch platform docking | Support protocols: Support platforms such as 808, GB/T28181, RTMP, RTSP, ONVIF protocols and other mainstream protocols in the market to connect with audio and video, intercom, and location device information. |
Basic Device Functions
| Video extension | support |
|---|---|
| Video pre-recording | support |
| USB flash drive function | Drive mode: After connecting to the computer, you can enter the USB flash drive mode (removable hard disk) through the upper computer on the PC side; Non-drive mode: After connecting to the computer, directly enter USB flash drive mode (removable hard disk); one of the two modes can be selected |
| Replace the battery without power | When the device is in use, remove the main battery and continue to maintain normal recording status |
| Key Document Marker | You can mark this video file by pressing the corresponding button during the recording process; |
| menu language | Default Simplified Chinese/English (other languages can be customized) |
| continuous shooting function | The supporting device can take more than 10 photos continuously at one time |
| Impact alarm | Support airbag security. The product needs to have a G sensor, which can record drops and record collisions. If it has a 4G function, it can be linked in the background. |
| password protection function | support |
| video encryption | Supports AES256 encryption-SHA1-SHA2 |
| night vision | Automatic or manual night vision switching, support for high-power red lights |
| fill light | Support the use of white LEDs for auxiliary lighting in dark situations. |
| data security management | Law enforcement recorders have different authority management. Primary authority can only view and playback law enforcement videos, photos, and recordings, and cannot delete or modify sensitive settings of the machine. Sensitive settings of the machine can only be made through password verification, and can only be copied, modified or deleted after connecting to a computer. |
| automatically overwritten | Support automatic override/non-override |
| safe mode | Safe mode is limited to basic operations such as recording, taking photos, and recording. A password is required to enter the settings interface and playback interface. |
| acquisition station | Support collection station and background management 1. Operation logs;2. Data collection and classification |
| Shooting in the middle | During the recording process, press the shoot button to take a photo individually |
| Built-in small battery | Support (built-in 60mAh battery changes constantly) |
| in-vehicle functions | Support vehicle-mounted certificate collection, and realize automatic video recording and evidence collection when the car ignites and turns on, and automatic shutdown after parking and flameout. |
| Close beat mode | Support no indicator light display and no sound reminder mode. |
Others
| protection grade | IP68 fell 2 meters |
|---|---|
| injection molding process | Two-color mold process (anti-crack) |
| low-temperature compatibility | Corresponding low-temperature batteries should be prepared for inspection and low-temperature areas. The low-temperature-30 ℃ battery life of a single battery should be more than 2 hours. Normal temperature batteries should be standard. Normal temperature batteries and low-temperature batteries have different densities and operating environments. |
| Storage relative humidity | 63%(30℃) |
| storage temperature | -40~60℃ |
| operating relative humidity | 40%~80% |
| operating temperature | -20~55℃ |
Packing Information
| Box gauge: length × width × height mm | |
|---|---|
| Machine net weight: | |
| Net weight of packaging box: | |
| Package: L × W × H mm | |
| Weight of the whole box: | |
| Number of boxes: | 20 PCS/box |
| Weight of outer packaging box: | 550g |

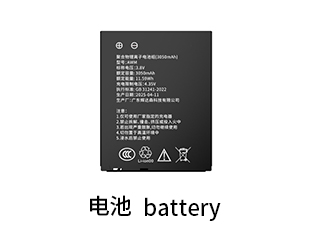

Standard Accessories
Dedicated Optional Accessories
Universal Optional Accessories
